Heavy Duty Self Dumping Hoppers for Wood Waste
OxBox builds heavy duty self dumping hoppers for sawmills, pallet manufacturers, lumber processors, and other wood product operations handling sawdust, wood chips, bark, pallet scraps, and bulky off cuts. Designed for safer, faster material handling, OxBox hoppers feature hands free dumping, welded steel construction, and up to 30% more usable capacity than conventional hopper designs.
Carry More Dump Less Keep Operators Moving
OxBox was designed to eliminate common problems associated with traditional self dumping hoppers. Its square, high capacity design and hands free release system help reduce manual handling and keep material moving.
Hands Free Dumping
The door opens automatically when the hopper tips past a 5 degree angle, helping the operator remain on the forklift.
Up to 30% More Capacity
The flat door design increases usable volume versus typical angled hopper designs, reducing dump cycles.
Heavy Duty Welded Steel
Built for demanding industrial environments and repeated handling of wood waste, scraps, chips, and off cuts.
Self Releasing and Locking Door
The door releases while dumping and relocks when the hopper is returned level.
Designed Around the Waste
Your Operation Produces
OxBox is built for wood product operations handling sawdust, wood chips, bark, pallet scraps, and other production waste throughout the day.
Sawmills
Sawdust, bark, chips, and bulky off cuts around saw lines and production areas.
Pallet Manufacturers
Broken boards, pallet scraps, sawdust, and production waste.
Lumber Processing
Planer shavings, chips, trim waste, and general debris.
Wood Recycling
Bulk wood waste headed to grinders, compactors, trailers, or disposal points.
Choose the Right Capacity for Your Operation
OxBox offers self dumping hoppers from half yard to 10 yard capacity. These six popular sizes cover a wide range of wood product applications, with additional standard sizes.
50 TC
Compact capacity for tighter production areas and lower volume wood waste handling.
100 TC
A versatile general purpose size for pallet shops, woodworking operations, and everyday scrap handling.
200 TC
More capacity for sawdust, chips, pallet scraps, and bulky off cuts in active production environments.
300 TC
A strong mid to high volume option for facilities that need fewer dump cycles without the largest footprint.
500 TC
High capacity waste handling for busy sawmills, pallet operations, and wood processing facilities.
1000 TC
The largest standard OxBox capacity for operations handling very high volumes of wood waste and scrap.
From Half Yard to 10 Yard Capacity
Choose from nine standard capacities, with custom sizing available for unique applications. All dimensions are in inches. Contact Barry for current pricing and configuration guidance.
| Model | Capacity | Box Depth | Width | Height | Overall Depth |
|---|---|---|---|---|---|
| 50 TC | 1/2 Yard | 33.5 | 34.0 | 31.2 | 40.7 |
| 75 TC | 3/4 Yard | 33.5 | 34.0 | 42.2 | 44.8 |
| 100 TC | 1 Yard | 42.4 | 36.7 | 43.2 | 50.6 |
| 150 TC | 1 1/2 Yard | 42.4 | 47.0 | 43.2 | 50.2 |
| 200 TC | 2 Yard | 46.4 | 54.7 | 47.2 | 53.1 |
| 300 TC | 3 Yard | 50.4 | 74.0 | 47.2 | 58.6 |
| 400 TC | 4 Yard | 62.4 | 74.0 | 49.2 | 76.3 |
| 500 TC | 5 Yard | 62.4 | 81.0 | 49.3 | 75.6 |
| 1000 TC | 10 Yard | 75.4 | 85.0 | 75.3 | 89.1 |
Configure the Hopper Around Your Operation
OxBox offers multiple options so the hopper can fit your floor plan, material type, and handling process.

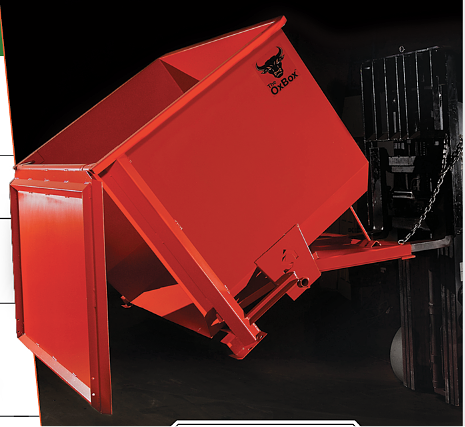

True Hands Free Self Dumping Operation
Pick Up
The forklift engages the large fork pockets.
Tip Past 5 Degrees
The OxBox door releases automatically without input or a manual lever.
Dump the Load
Material empties while the operator remains seated on the forklift.
Return Level
The door relocks when the hopper is placed back level.
